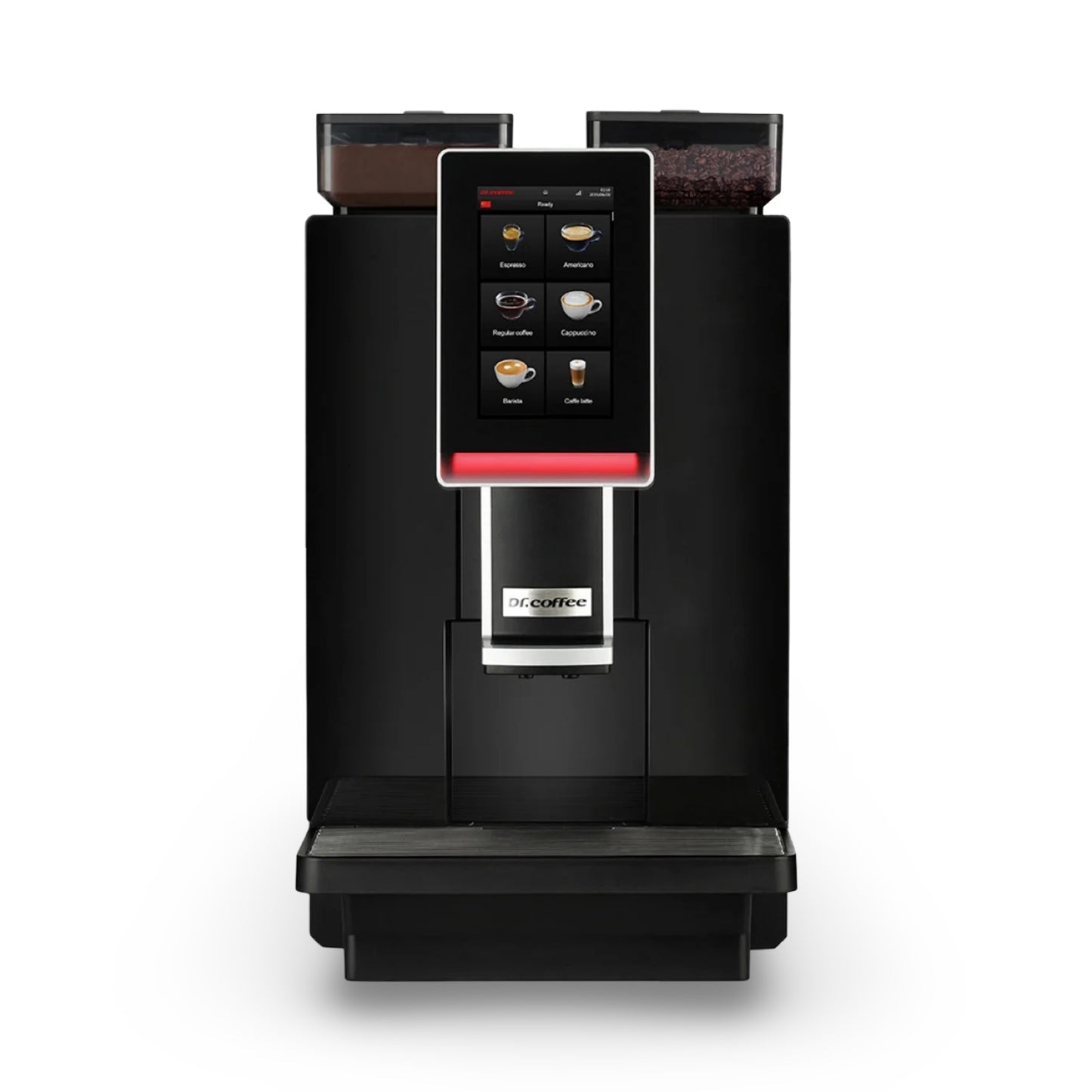

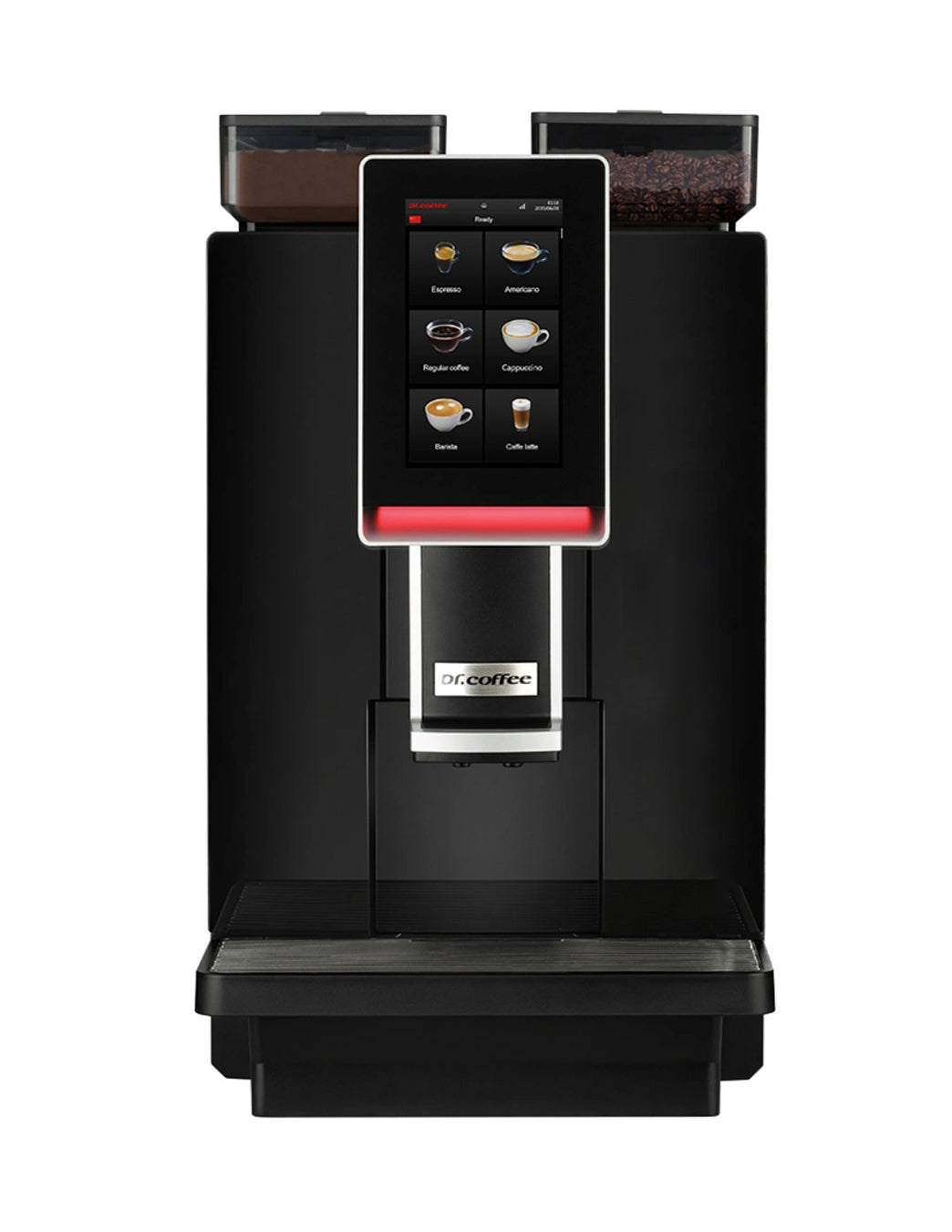

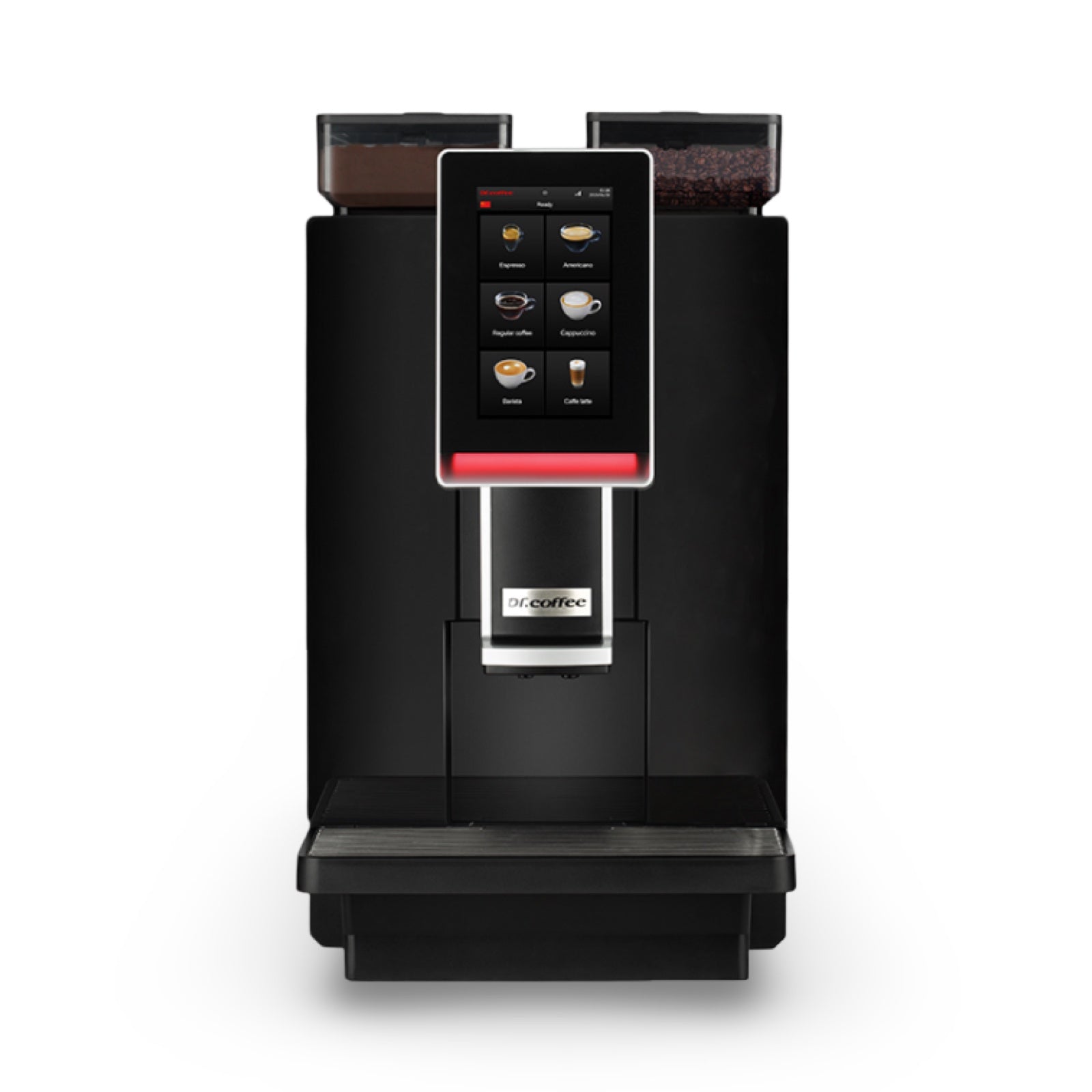

Dr. Coffee Mini Bar

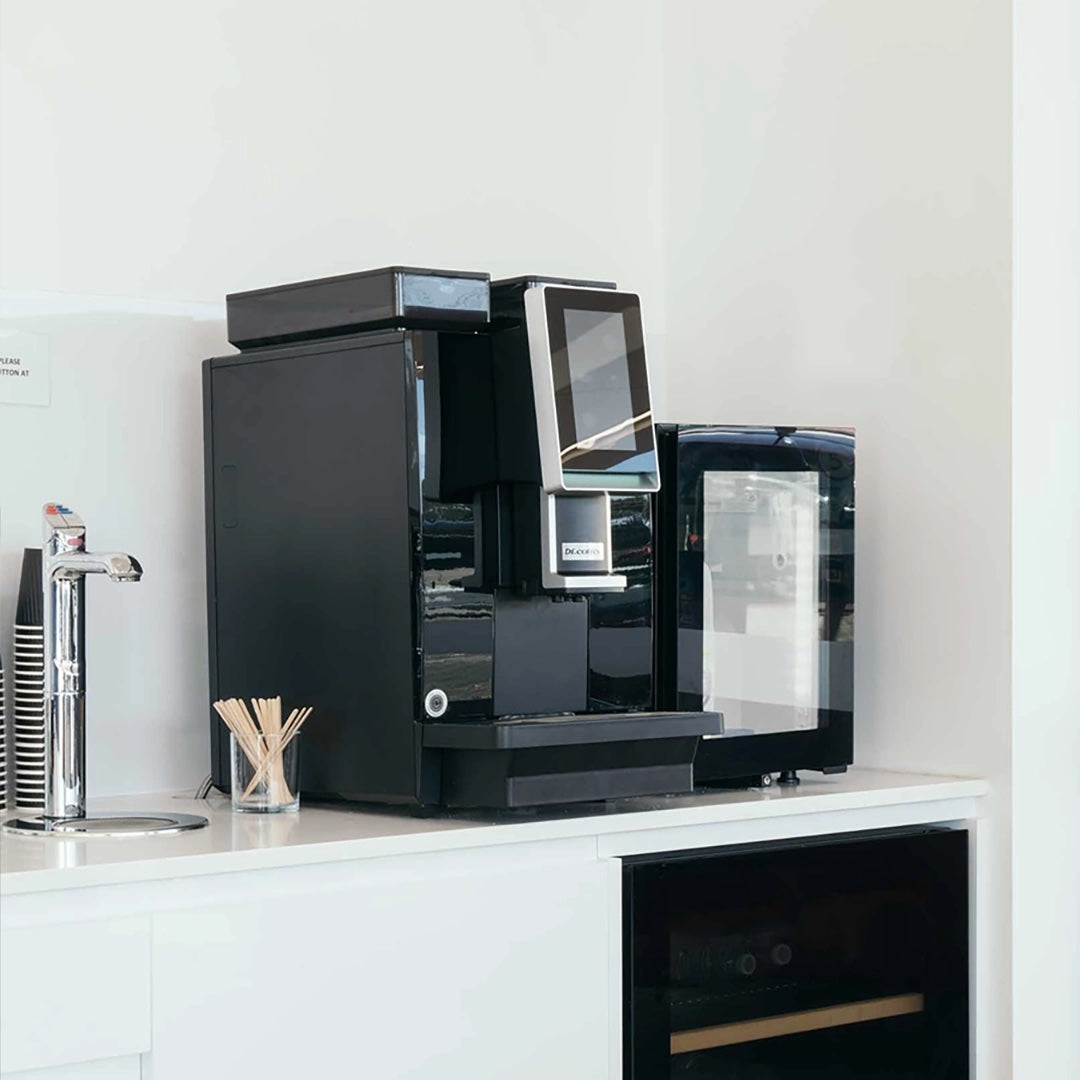

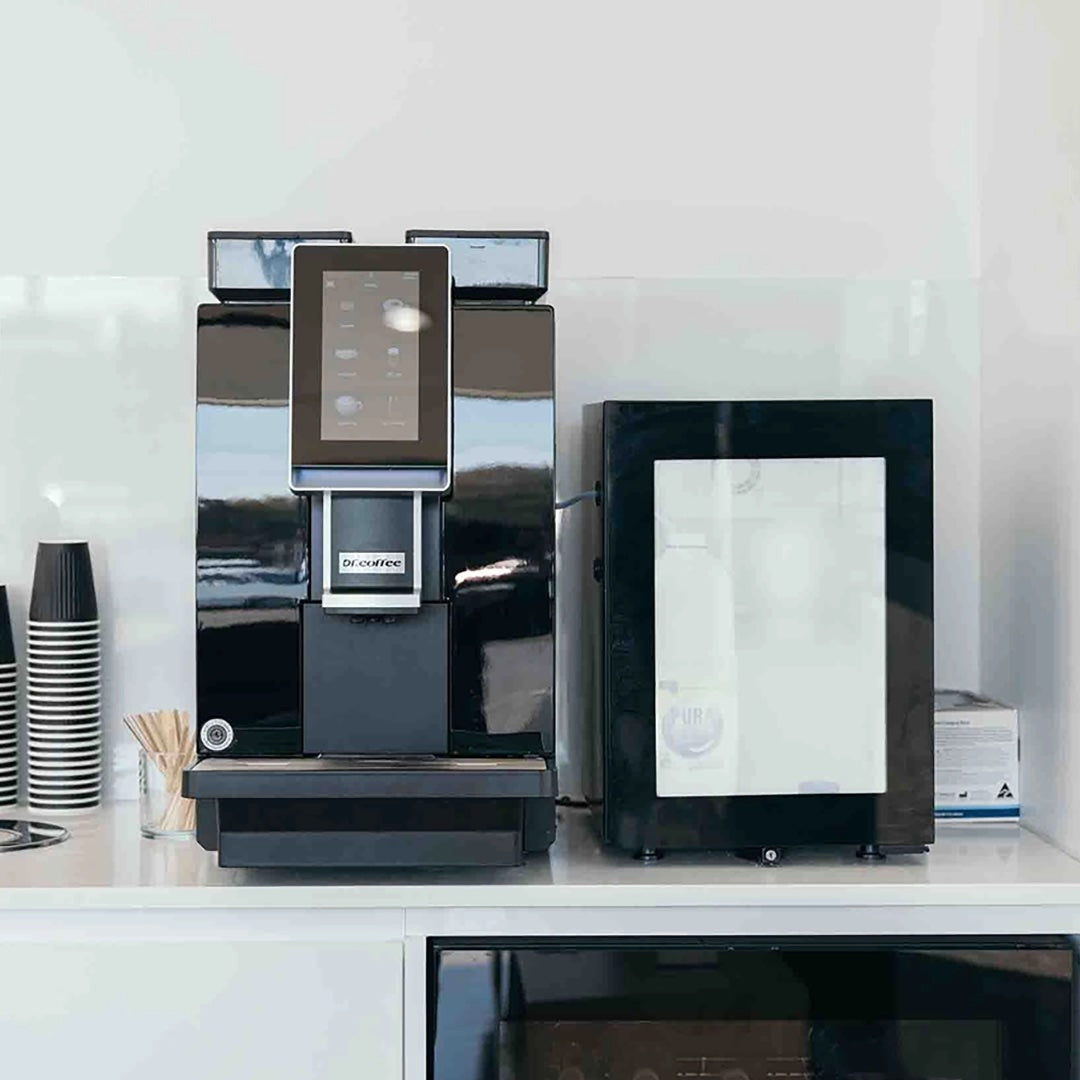

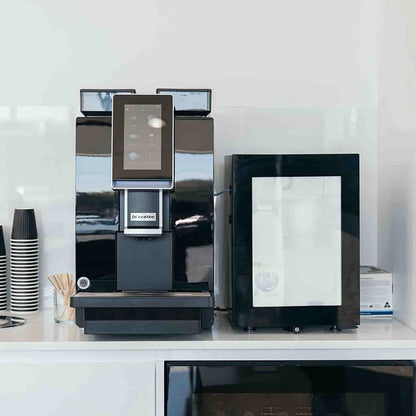

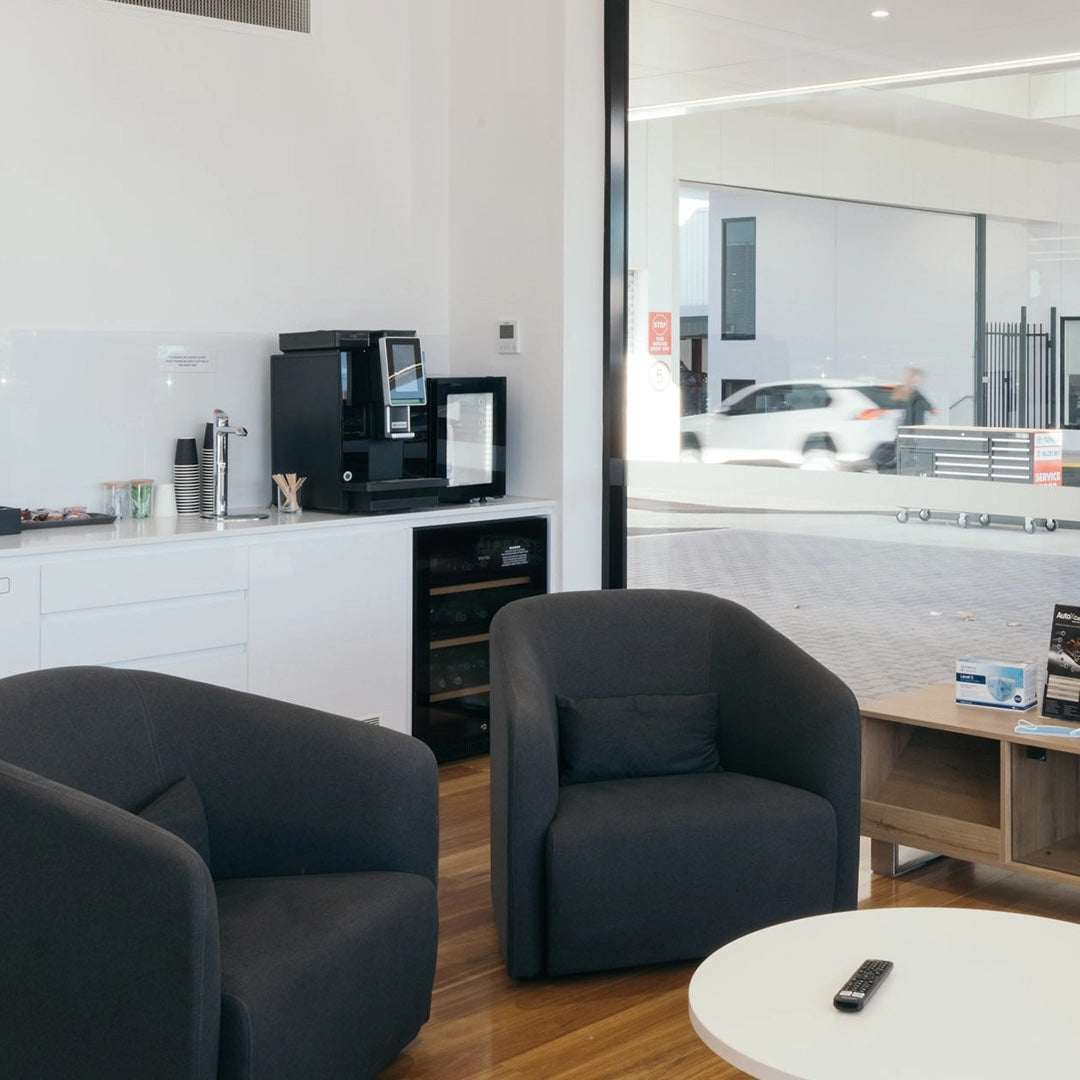

Dr. Coffee Minibar series offers full control and customisation throughout the day. Perfect for the office, convenience store, meeting room or public spaces.
The large full colour LED touch screen allows for custom branding and imaging, and with its elegant light bar, it will stand out in every environment.

Ceramic grinder

Ceramic flat-type blades, accurately grind the beans into unified-size powder, bringing out unique flavour.

Be your own barista

Be your own barista and get creative with the manual steam wand (S2 model) or let the machine do the work and create up to 24 different drinks.

Hot chocolate
Not a coffee drinker? Hot chocolate, Chai Tea, Matcha Latte, all options are available thanks to the large powder hopper

Custom branding

The large LED screen is fully customizable with the ability to add images, logos as well as custom icons for personalised beverages.

Automatic Cleaning

All cleaning operations are automatic to save
time and cut down on operating cost.

Metal, high capacity Brewer

The pioneering brewing system can meet your
need for both non-pressurised regular coffee
and pressurised espresso.

Daily output    200 Cups
Internal Water tank    4L
Bean Hopper    1,400 gr
Powder Hopper (Milk/Chocolate)    600/1,000 gr
Display Size     7.1”
Coffee Dosing (max)    21g
Dual Boiler & Pump    Yes
Plumbed Water & Waste    Yes
Operating System     Linux

Technical Specifications

Power Usage
220-240V -
50/60Hz
2700-3100W
15AMP

Connection
G3/4’ or 4L Water Tank

Water Pressure
Max 0.6Mpa

Dimensions
340mm (W) x 545mm(D) x 610mm (H)

Weight
26.5 Kg
